Modular Vacuum Insulated Pipes

Product Description

The Vacuum Insulated Pipeline (VIP) is a double-wall, vacuum insulated modular pipeline system engineered for cryogenic liquid transfer. Each module features a 20 mm ID inner process pipe, flange-ended joints, and a factory-evacuated annular space, complemented by flexible vacuum insulated hose sections at source and transfer nozzles.

The modular architecture enables rapid, reliable assembly across varying site layouts and terrain conditions, while minimizing field welding and vacuum work.

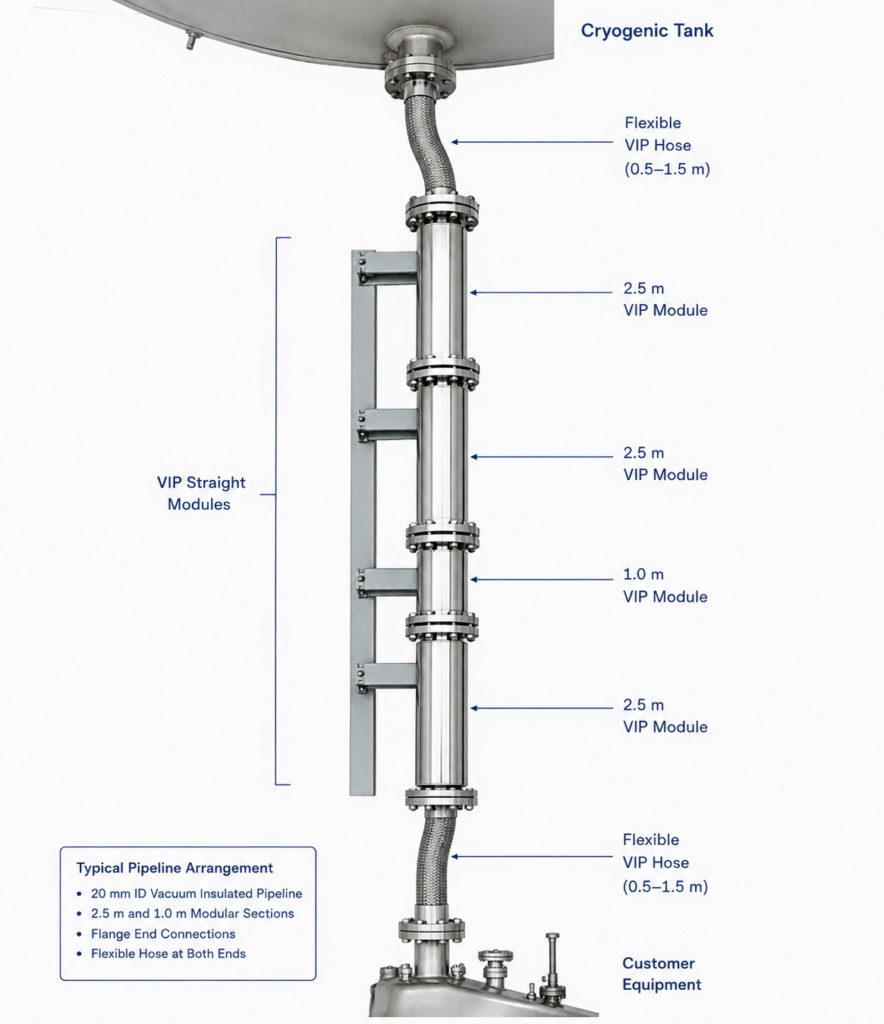

Standard Modular Configuration

Note: Specifications are subject to project-specific customization (pipe size, length, pressure class, and end connections). Contact our engineering team for a certified project datasheet.

• Liquid Nitrogen (LIN), Liquid Oxygen (LOX), Liquid Argon (LAR) distribution
• Liquefied Natural Gas (LNG) transfer lines
• Industrial gas production and bulk storage plants
• Pharmaceutical and biotechnology facilities
• Food processing and cold-chain applications
• Medical gas supply systems
• Semiconductor and electronics manufacturing

Standard supply includes 2.5 m and 1.0 m straight VIP modules, flexible vacuum insulated hose assemblies, flange connection kits with gaskets and bolting, pipe supports, general arrangement (GA) drawing, installation and commissioning manual, and factory test certificates (hydrotest, vacuum integrity, and helium leak test).

Key Features & Benefits

• Modular, pre-fabricated construction — minimal field welding and vacuum work
• Low heat leak and negligible cryogen boil-off across the transfer line
• Factory vacuum-sealed and helium leak-tested annulus for guaranteed performance
• Lightweight sections simplify transportation, handling, and installation
• Flange-ended, bolt-together joints allow straightforward maintenance and future expansion
• Flexible hose sections absorb thermal contraction and simplify equipment tie-ins

Quick Facts

• Inner Pipe: SS 304L / 316L, 20 mm ID
• Design Pressure: 25 barg
• Design Temp.: −196°C to +60°C
• Heat Leak: < 1.0 W/m (module-dependent)
