1.1 Cryogenic Liquid Pumping Skid

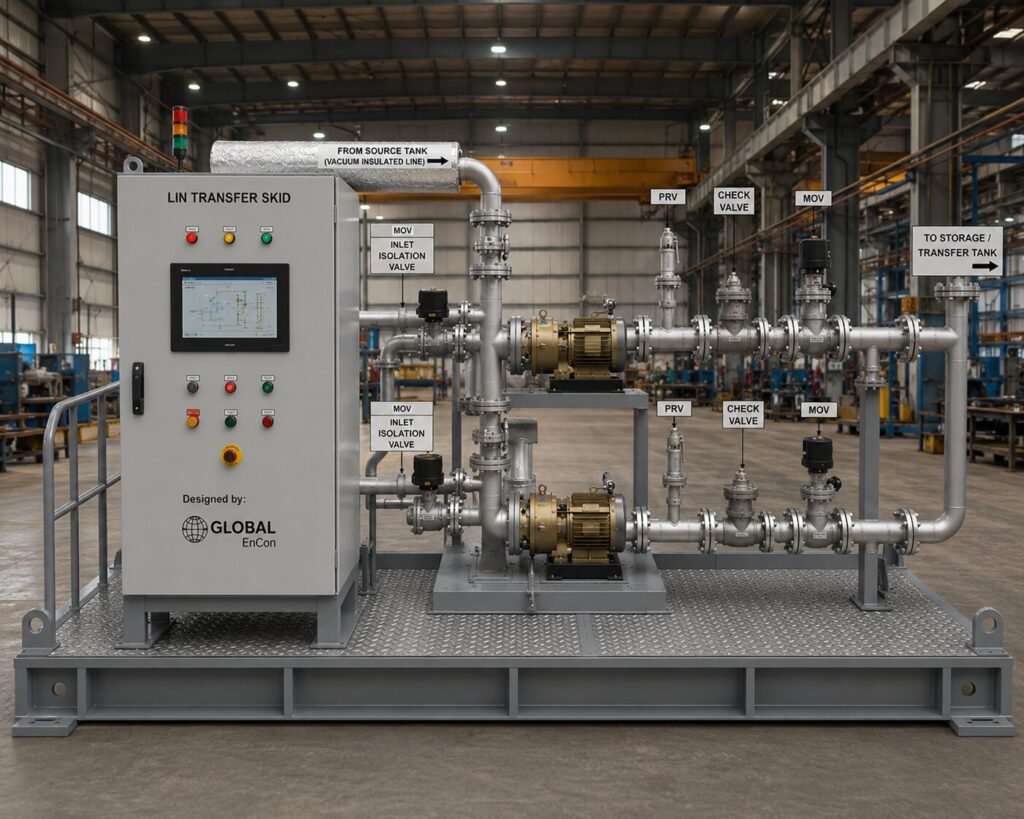

The Cryogenic low-pressure liquid transfer skid is a fully integrated, skid-mounted system designed for efficient transfer and low-pressure filling of cryogenic liquid such as nitrogen, oxygen and argon. The system comprises two Cryogenic Centrifugal pumps, connected with a filling manifold, control valve, NRV, PRV, VFD-PLC control cabinet, and all necessary interconnecting piping and hoses, delivering a compact, ready-to-install solution.

Cryogenic liquid is drawn through a vacuum insulated pipe at the pump inlet and pumped by centrifugal mechanism, converting it to higher pressure liquid for tank filling or downstream applications. One pump operates while the second remains on standby, with PLC integration to source and storage tank level transmitters activating pumps automatically at desired levels.

1.2 Cryogenic Gas Cylinder Filling Skid

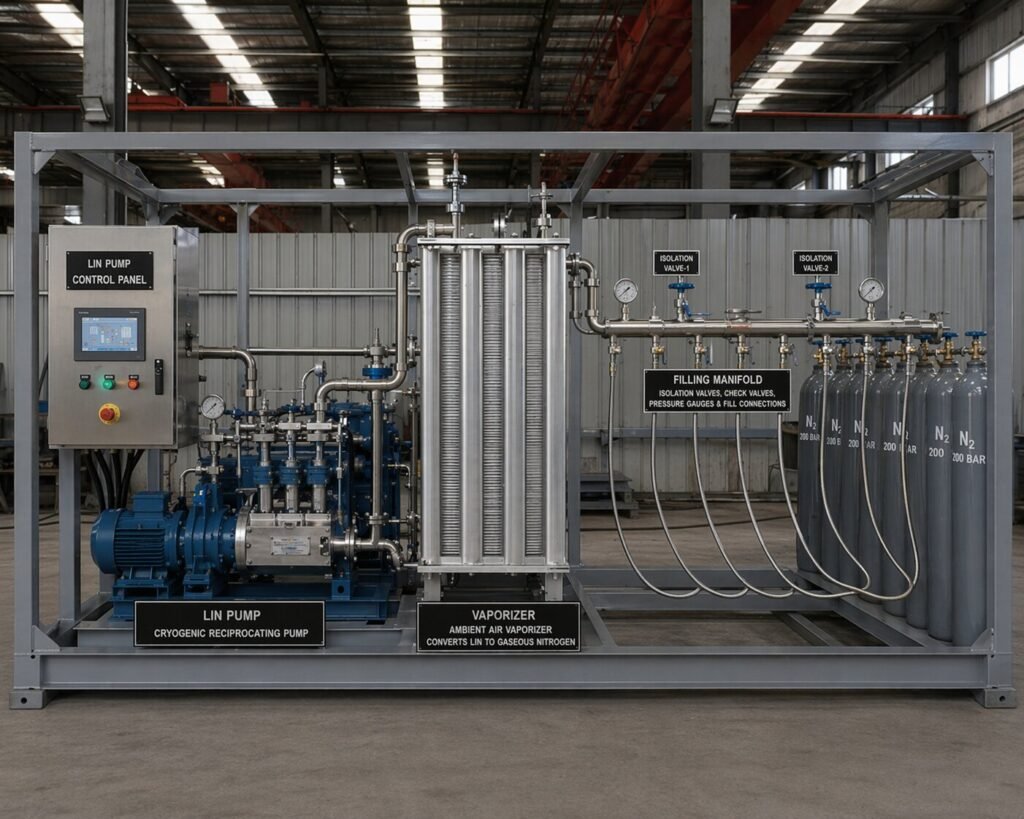

The Cryogenic Liquid High-Pressure Gas Filling Skid is a fully integrated, skid-mounted system for efficient transfer and high-pressure filling of industrial gases such as nitrogen, oxygen and argon. It comprises a vacuum-insulated reciprocating pump, ambient air vaporizer, filling manifold, pump control cabinet, and all necessary interconnecting piping and hoses.

Cryogenic liquid is pressurized through the high-performance reciprocating pump and vaporized using an ambient air vaporizer, converting it to high-pressure gaseous form for cylinder filling or downstream applications.

Liquid Pumping Skid

• High-flow dual pump centrifugal operation
• Fully automatic and redundant — standby pump starts automatically on failure
• Automatically controlled isolation valves, NRV and PRV to protect pumps from counter-flow
• Auto start/stop integration with tank level and plant ESD
• Skid-mounted compact design for plug-and-play installation
• Suitable for nitrogen, oxygen, argon and LNG applications

Gas Filling Skid

• Vacuum-insulated reciprocating pump head for efficient, low-loss pressurization
• Ambient air vaporizer — energy-efficient, maintenance-free vaporization
• Multi-cylinder filling manifold with isolation valves, check valves & pressure gauges
• Integrated pump control cabinet for safe, automated operation
• Designed in compliance with international safety and engineering standards

• Industrial gas plants and cylinder filling stations
• On-site gas generation facilities
• Bulk tank filling / downstream liquid transfer
• LNG dispensing and transfer operations

Quick Facts

• Model: GCC-CP-24/90 & GC-FS-32
• Gases: N₂, O₂, Ar, LNG
• Configuration: Skid-mounted, plug-and-play
• Control: VFD-PLC integrated
